سلام
تصویر زیر یک مبدل افزاینده dc به dc است.
من تا 50 ولت خروجی از این گرفته ام.
ام نیاز به ولتاژ بالاتر دارم.
آیا میتوانم 2 عدد از این ماژول را با هم سری کنم؟
سپاس

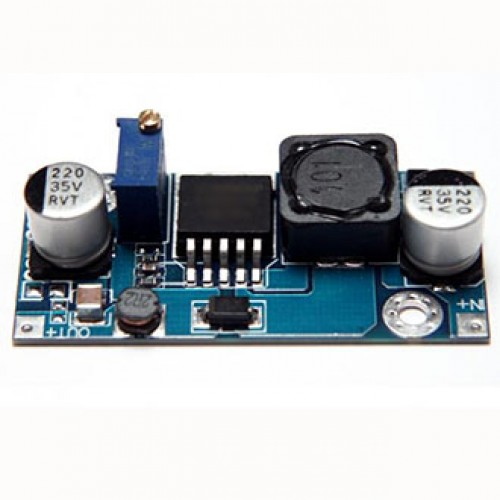

[h=1]ماژول مبدل ولتاژ XL6009 - LM2577[/h]
Module Properties: non-isolated step-up module (the BOOST)
3-34V input voltage
Output voltage: continuously adjustable (4-35V)
Output Current: 2.5A (MAX)
Input Current: 3A (peak to 5A) (5A current chips)
Output power: natural cooling real power of 15W, plus heat sink 25W (MAX)
Maximum output power = input voltage * 5A * conversion efficiency
Output power limit (conditions: heat well):
Input 5V output 12V 1.2A
Input 5V output 24V 0.6A
Input 7.4V output 12V 2A
Enter the 7.4V output 19V 1.2A
Enter the 7.4V output 24V 0.9A
Input 12V output 19V 2A
Input 12V output 24V 1.5A
Conversion efficiency: 92% (Highest)
Switching Frequency: 50KHz
Output ripple: 50mV (Maximum)
Load regulation: ±0.5%
Voltage Regulation: ±0.5%
Operating temperature: industrial grade (-40 ° C to +85 ° C)
(ambient temperature over 40 degrees, to reduce power use, or to enhance heat dissipation)
Size 48*23*14（L * W * H）（mm）
3-34V input voltage
Output voltage: continuously adjustable (4-35V)
Output Current: 2.5A (MAX)
Input Current: 3A (peak to 5A) (5A current chips)
Output power: natural cooling real power of 15W, plus heat sink 25W (MAX)
Maximum output power = input voltage * 5A * conversion efficiency
Output power limit (conditions: heat well):
Input 5V output 12V 1.2A
Input 5V output 24V 0.6A
Input 7.4V output 12V 2A
Enter the 7.4V output 19V 1.2A
Enter the 7.4V output 24V 0.9A
Input 12V output 19V 2A
Input 12V output 24V 1.5A
Conversion efficiency: 92% (Highest)
Switching Frequency: 50KHz
Output ripple: 50mV (Maximum)
Load regulation: ±0.5%
Voltage Regulation: ±0.5%
Operating temperature: industrial grade (-40 ° C to +85 ° C)
(ambient temperature over 40 degrees, to reduce power use, or to enhance heat dissipation)
Size 48*23*14（L * W * H）（mm）
