A
zero cross circuit (or zero crossing circuit) is an
electrical circuit that starts operation with the
AC load voltage at close to 0 Volts in the AC cycle. This is in relation to solid state relays, such as
triacs and
silicon controlled rectifiers. The purpose of the circuit is to start the triac conducting very near the time point when the load voltage is crossing zero volts (at the beginning or the middle of each AC cycle represented by a sine wave), so that the output voltage begins as a complete sine-wave half-cycle. In other words, if the controlling input signal is applied at any point during the AC output wave other than very close to the zero voltage point of that wave, the output of the switching device will "wait" to switch on until the output AC wave reaches its next zero point. This is useful when sudden turn-on in the middle of a sine-wave half cycle could cause undesirable effects like high frequency spikes for which the circuit or the environment is not expected to handle gracefully.
The point where the AC line voltage is 0 V is the
Zero Cross Point. When a triac is connected in its simplest form, it can clip the beginning of the voltage curve, due to the minimum gate voltage of the triac. A zero cross circuit works to correct this problem, so that the triac functions as well as possible. This is typically done with
thyristors in two of the three phases.

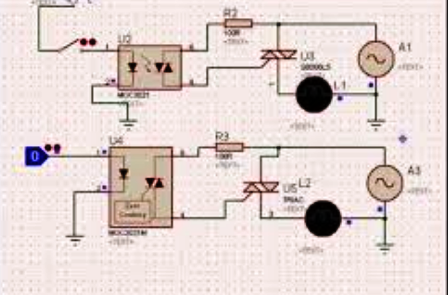

Many opto-triacs come with zero cross circuits built in. They are often used to control larger, power triacs. In this setup triac turn-on delays will compound, so quick turn on times are important.
The corresponding
phase angle circuits are more sophisticated and more expensive than zero cross circuits
البته در برق قدرت اطلاعاتی ندارم
اما استنباط از متن ظاهرا اینست که این قطعه میتواند ترایاک را در نقطه صفر شکل موج سینوسی نیز راه اندازی کند
در واقع امکان تشخیص نقطه صفر را دارد
پس احتمالا امکان جایگزینی 3052 بجای 3063 نیست
ضمنا 3063 در فروشگاه پایا و بازار موجود است
