فایلEMMC فایل دستگاه مدیا استار Mediastar MS-Diamond Z1 با برد S0077BC 20171227 و آی سی KLM8G1GEME-B041

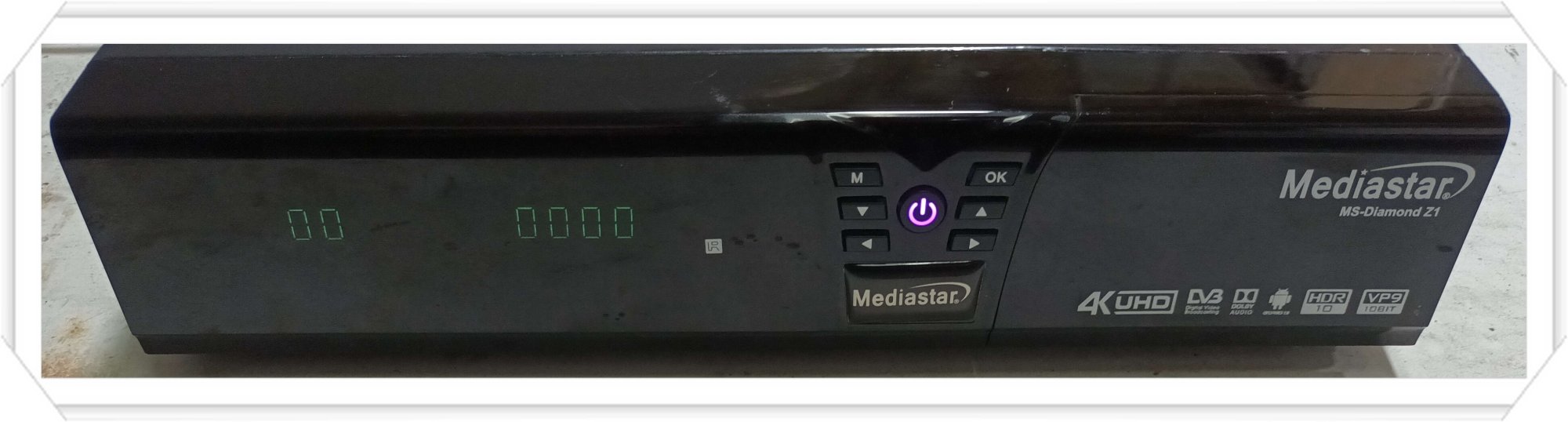

Mediastar MS-Diamond Z1

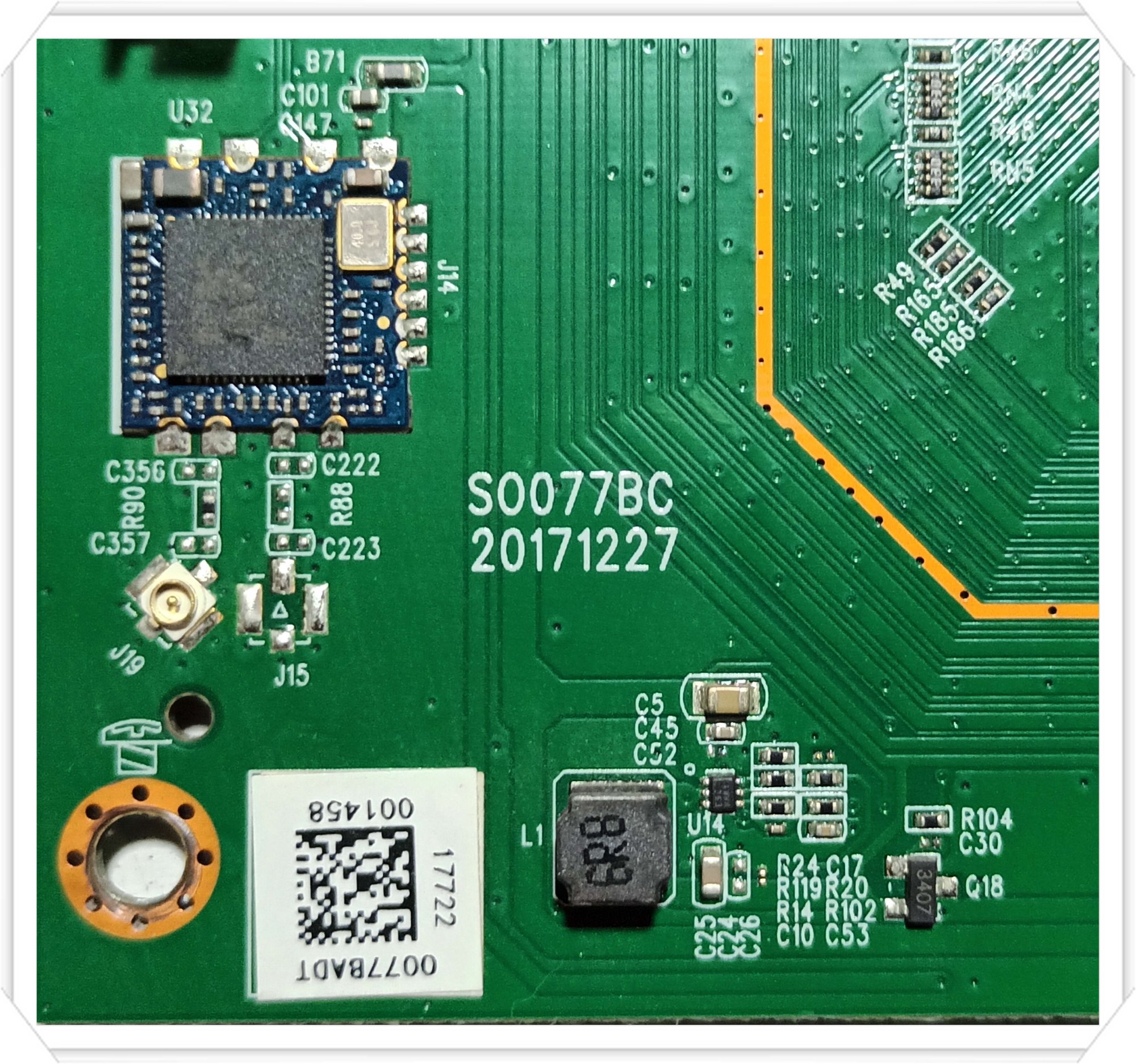

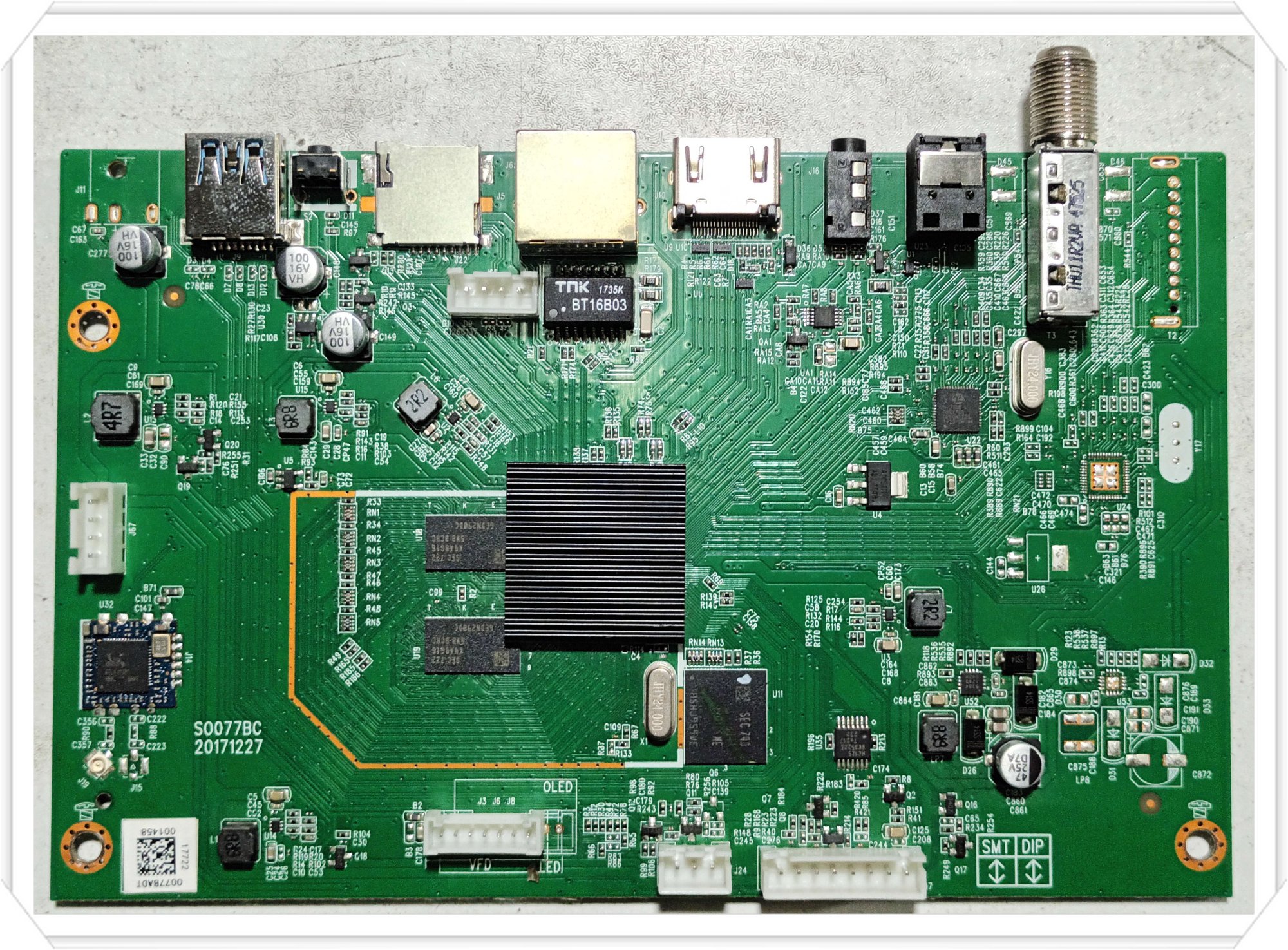

Chassis S0077BC 20171227

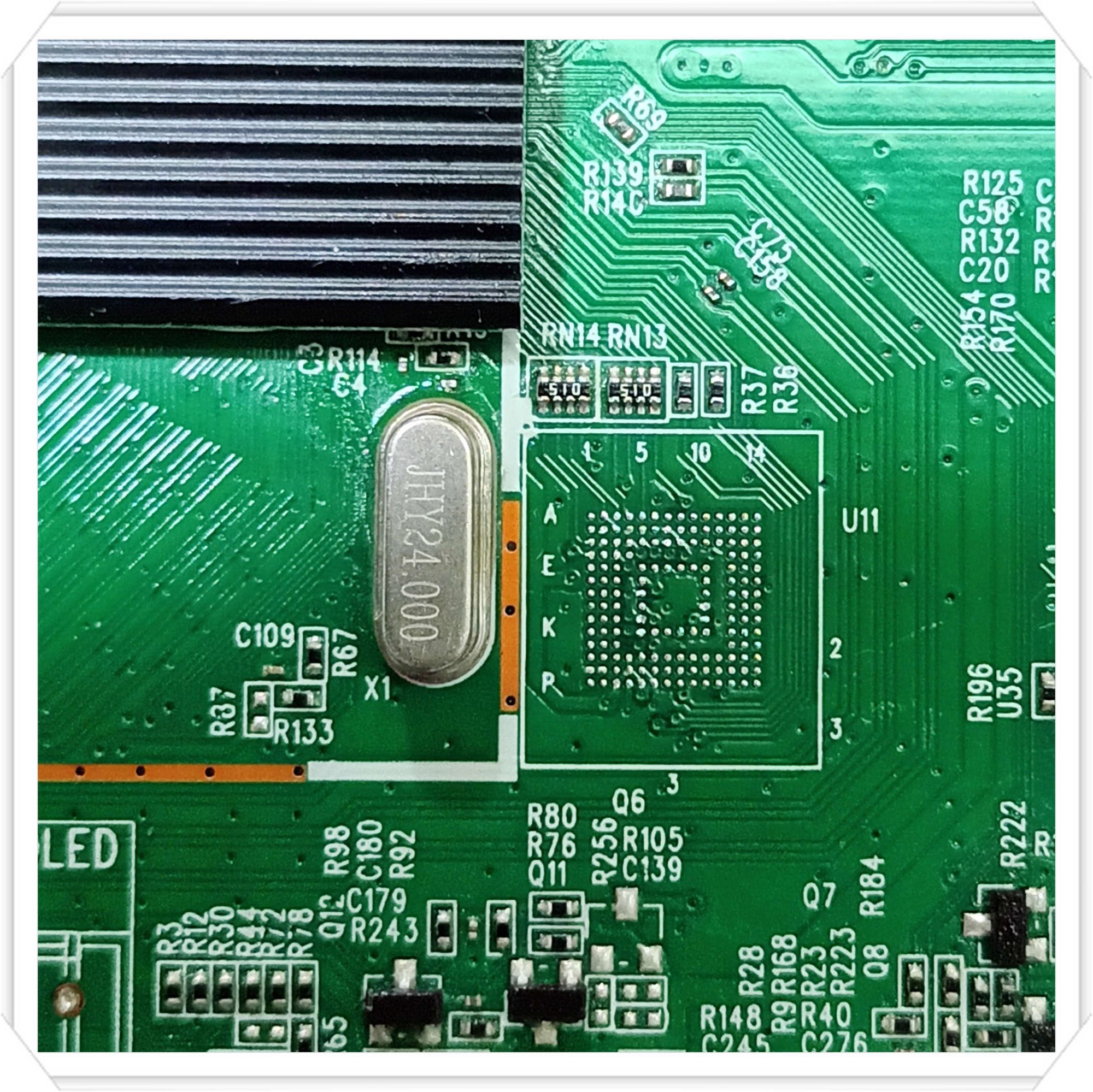

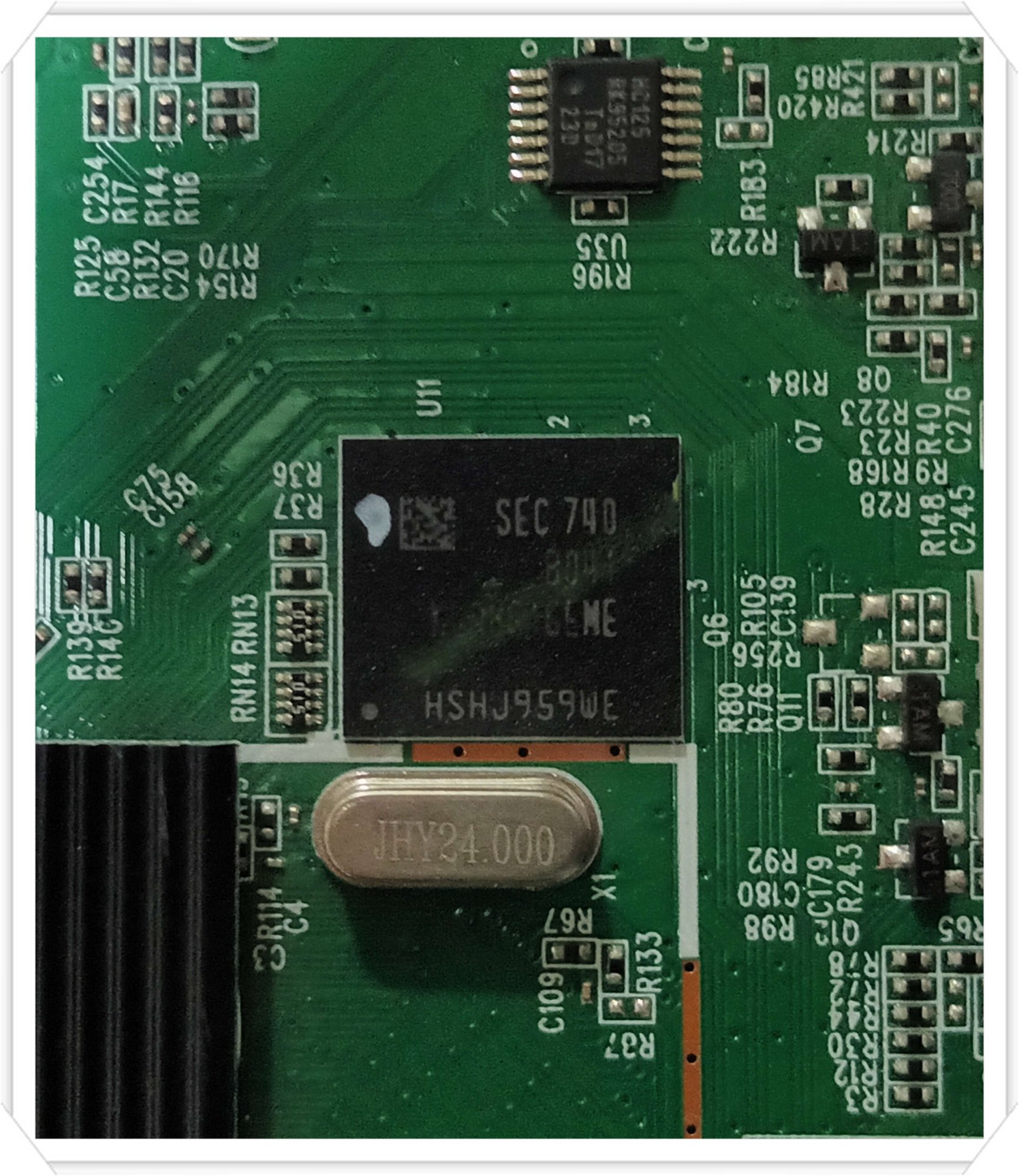

eMMC KLM8G1GEME-B041

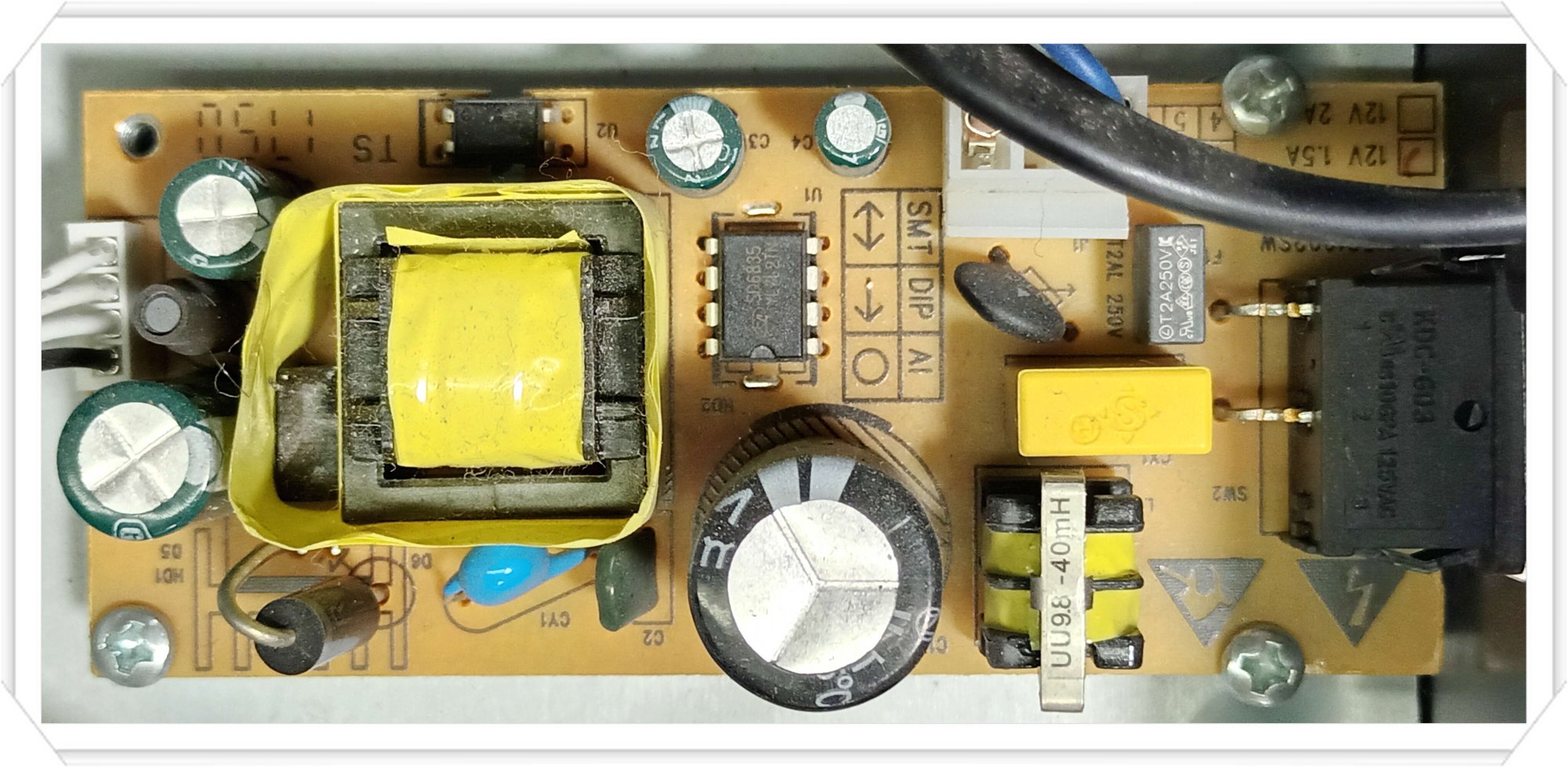

Power SD6835

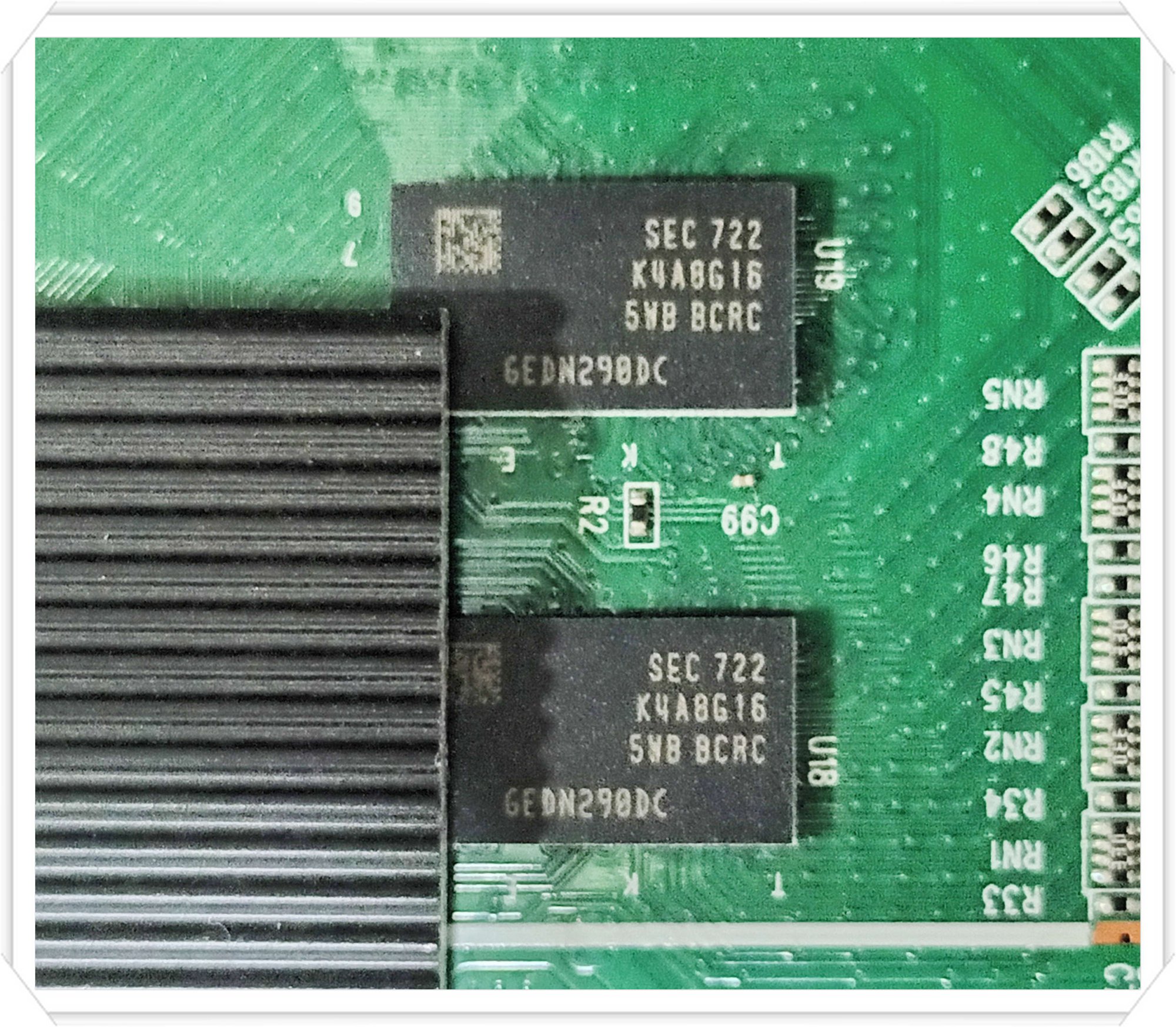

Ram K4A8GI65WB-BCRC
Card CA050B-V3 20170721

Android Info
Brand = HiSTBAndroid
Vendor = Hisilicon
Device = Hi3798MV200
Model = Hi3798MV200
Name ID = Hi3798MV200
Product = Hi3798MV200
CPU ABI = armeabi-v7a
Android Version = 9
Firm Version = Hi3798MV200-eng 9 PPR1.180610.011 182727 dev-keys
Inc. Version = 182727
Firm Date = Wed Mar 27 18:29:02 CST 2024
Security Patch = 2019-03-05
Platform = bigfish
Firm Date = Wed Mar 27 18:28:47 CST 2024

EMMC CID: 15010038474D4534520160C78DA5A4BB
EMMC CSD: D02701320F5903FFF6DBFFEF8E40400D
EMMC NAME: 8GME4R , Vendor: SAMSUNG , S/N: 60C78DA5 , rev. 01
EMMC NAME (HEX): 38474D453452
EMMC ROM 1 (Main User Data) Capacity: 7456 MB (0001D2000000)
EMMC ROM 2/3 (Boot Partition 1/2) Capacity: 4096 KB (000000400000)
EMMC RPMB (Replay Protected Memory Block) Capacity: 512 KB (000000080000)
Extended CSD rev: 1.8 (MMC 5.1)
Boot from: ROM1 (Main User Area) , width: 4 bit
Boot Partition [179] / Bus Config [177] : 0x38 / 0x01
H/W Reset Function [162] : 0x01 , RST_n signal is permanently enabled
Partition setting [PARTITION_SETTING_COMPLETE] : 0x00​
