فایلEMMC فایل تلویزیون TCL LED43P1FS با برد 40-MT56FC-MAE2HG و آی سی THGBMBG5D1KB0

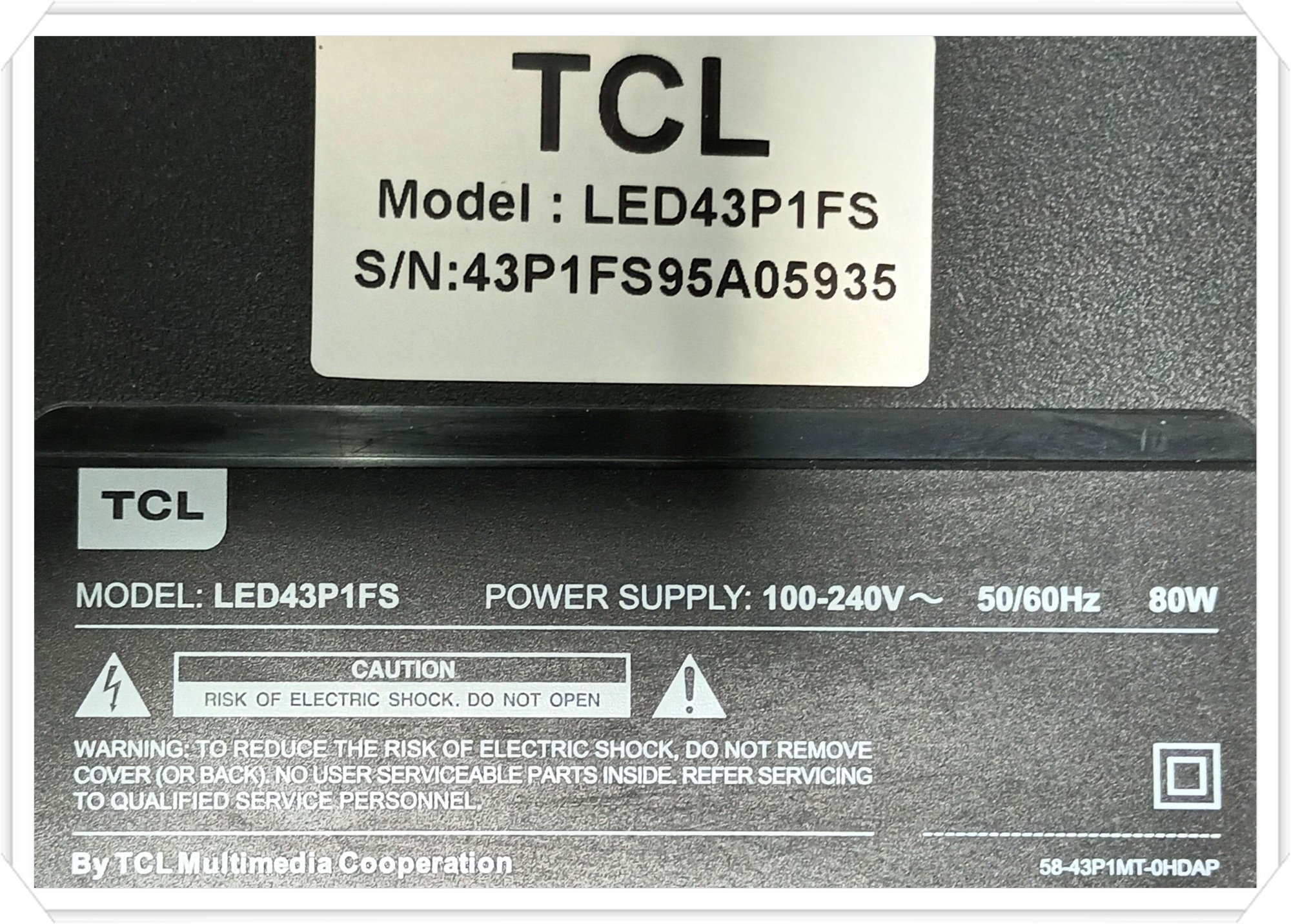

TCL LED43P1FS

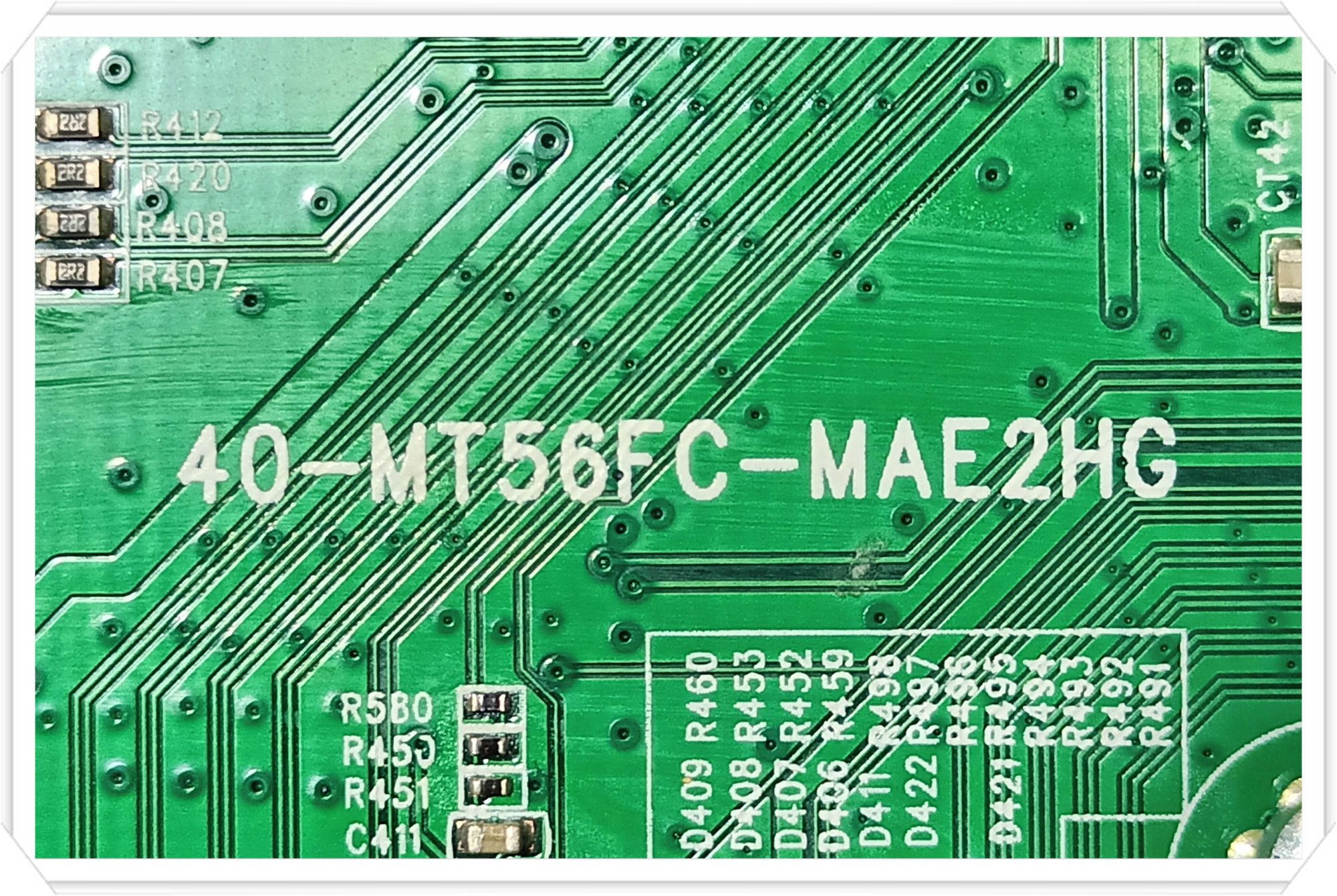

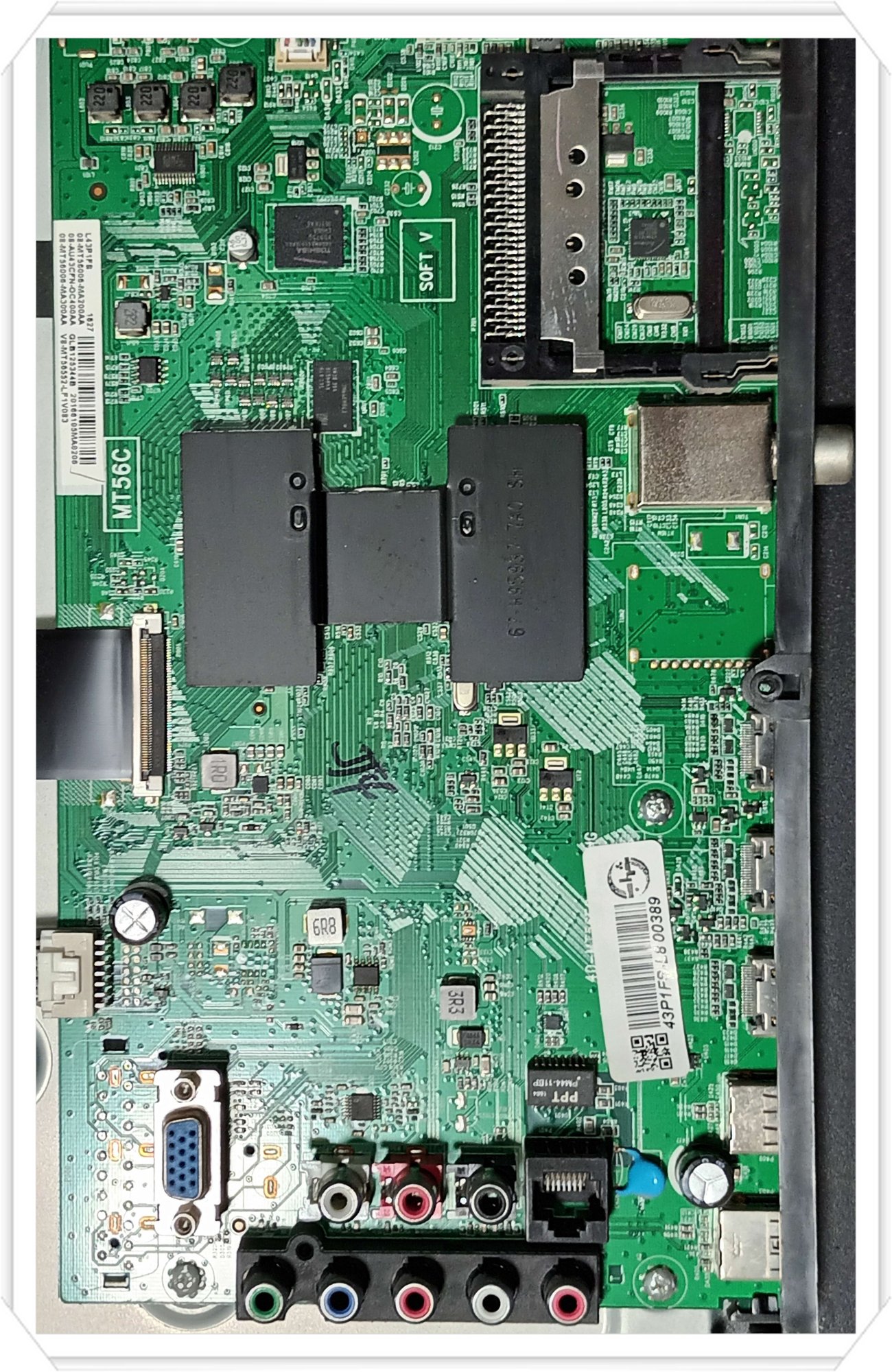

Chassis 40-MT56FC-MAE2HG

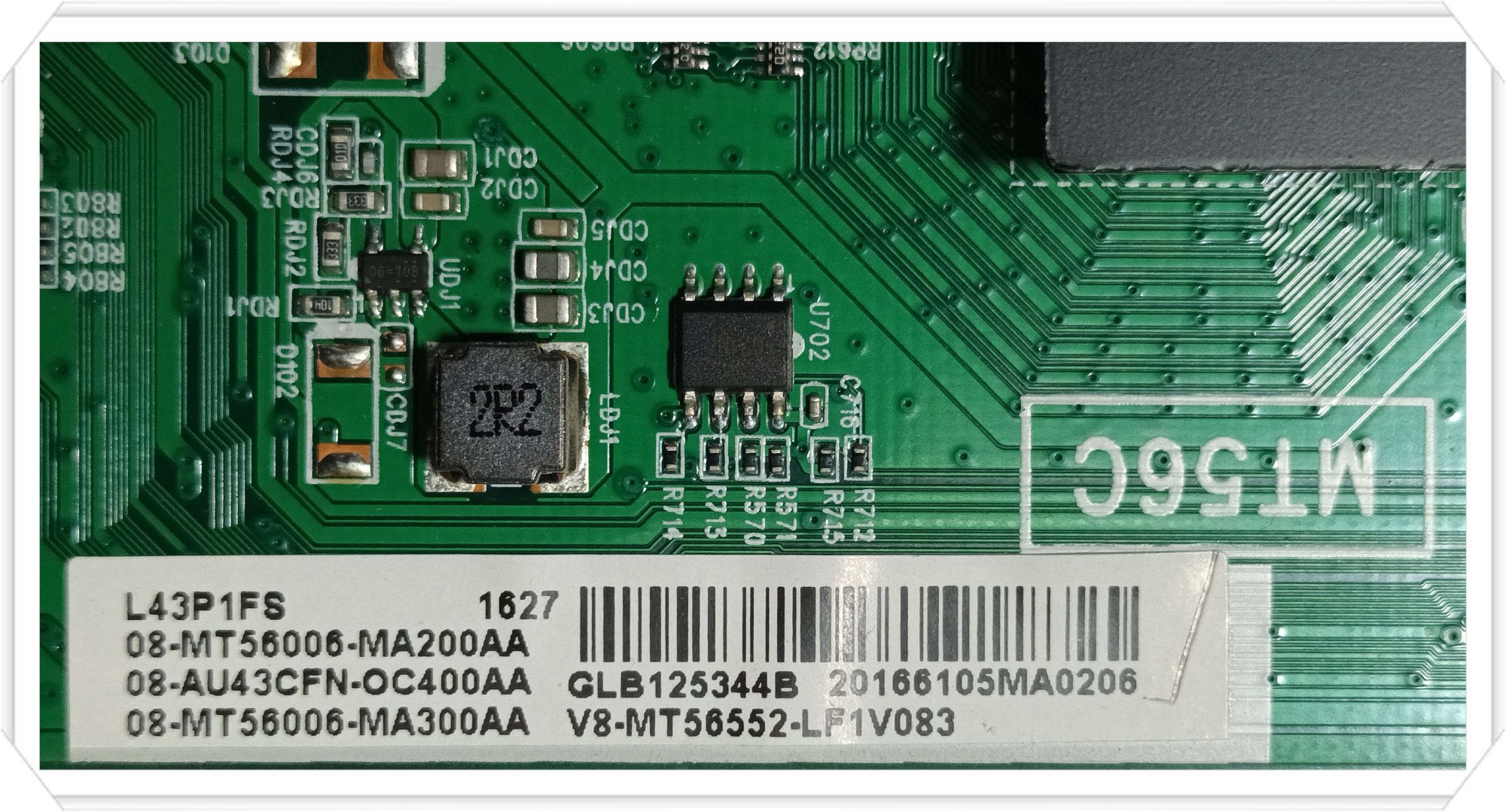

Chassis Label L43P1FS V8-MT56552-LV1V083

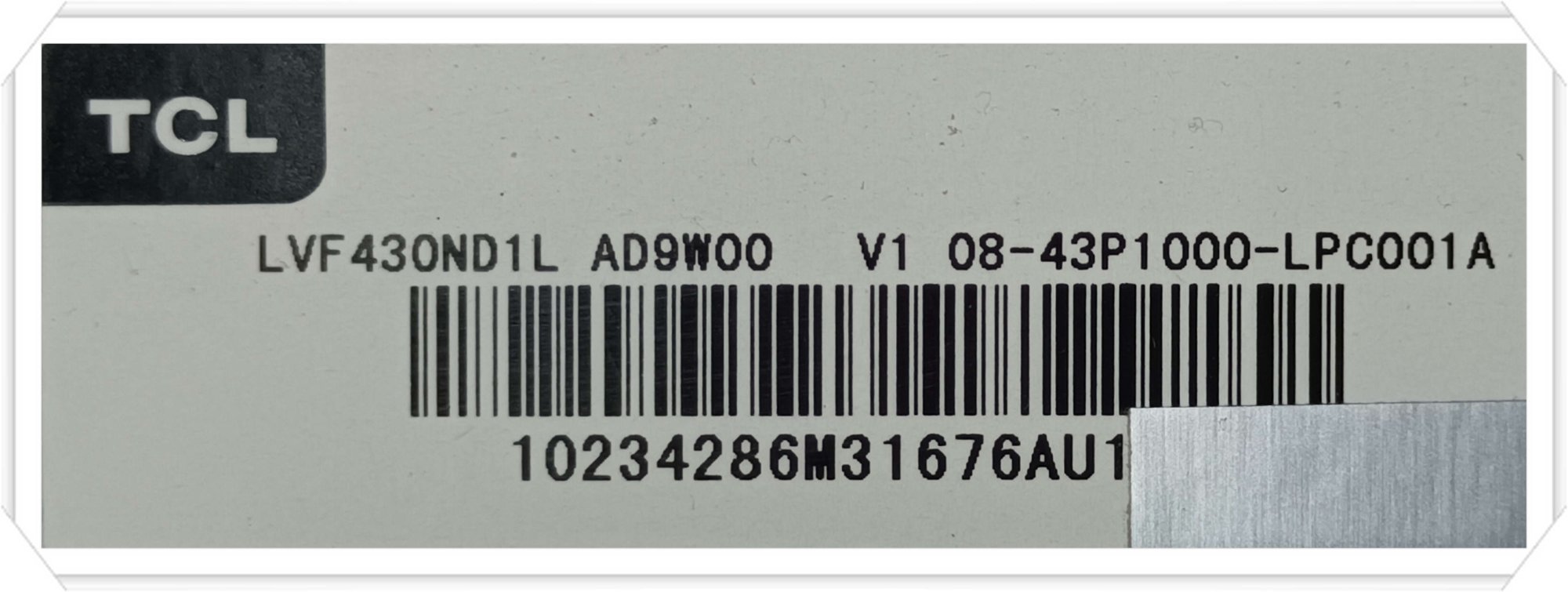

Panel LVF430ND1L AD9W00 V1 08-43P1000-LPC001A

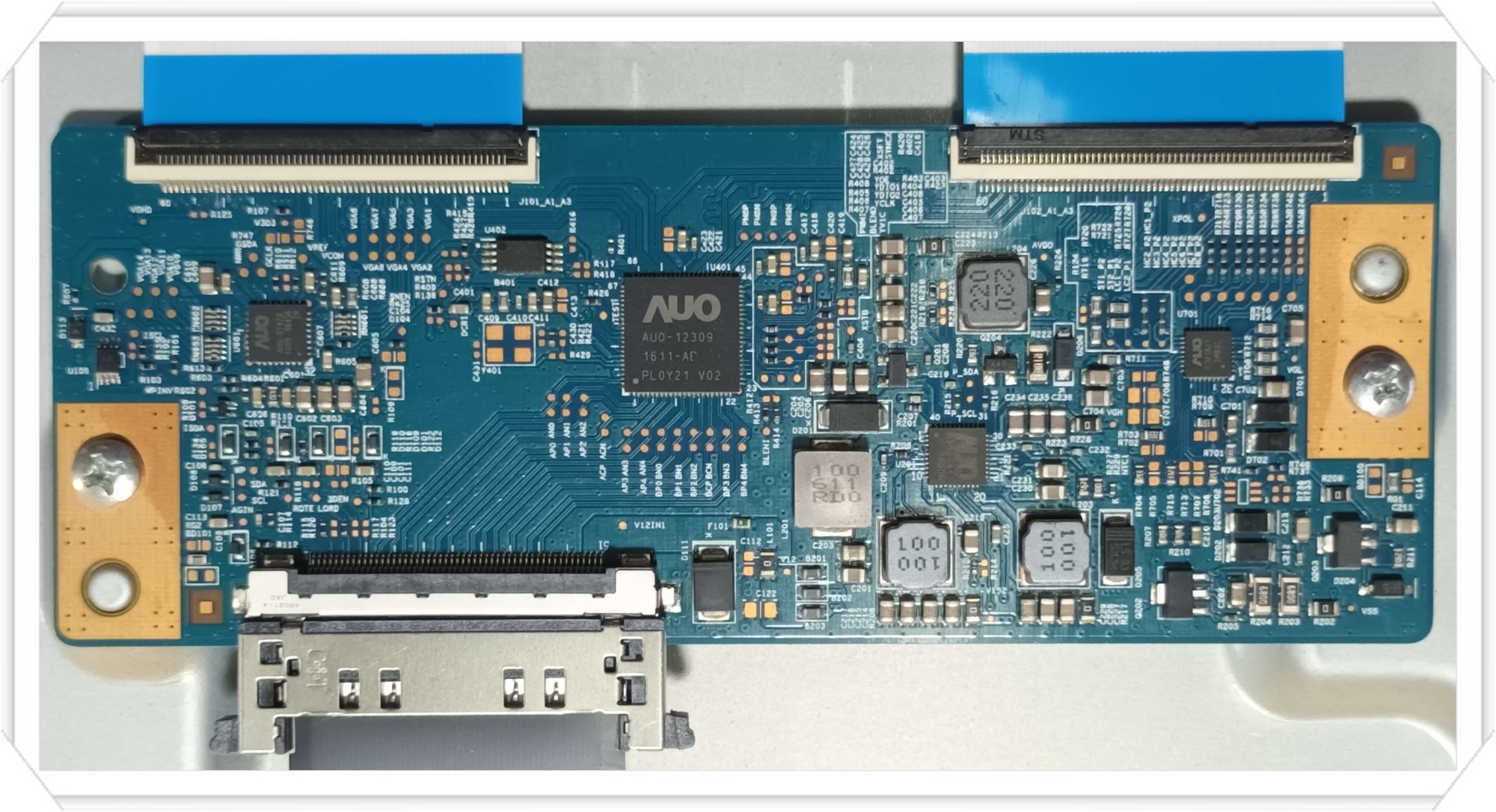

Address 43T02-S03 T430HVN02.0 XL BD

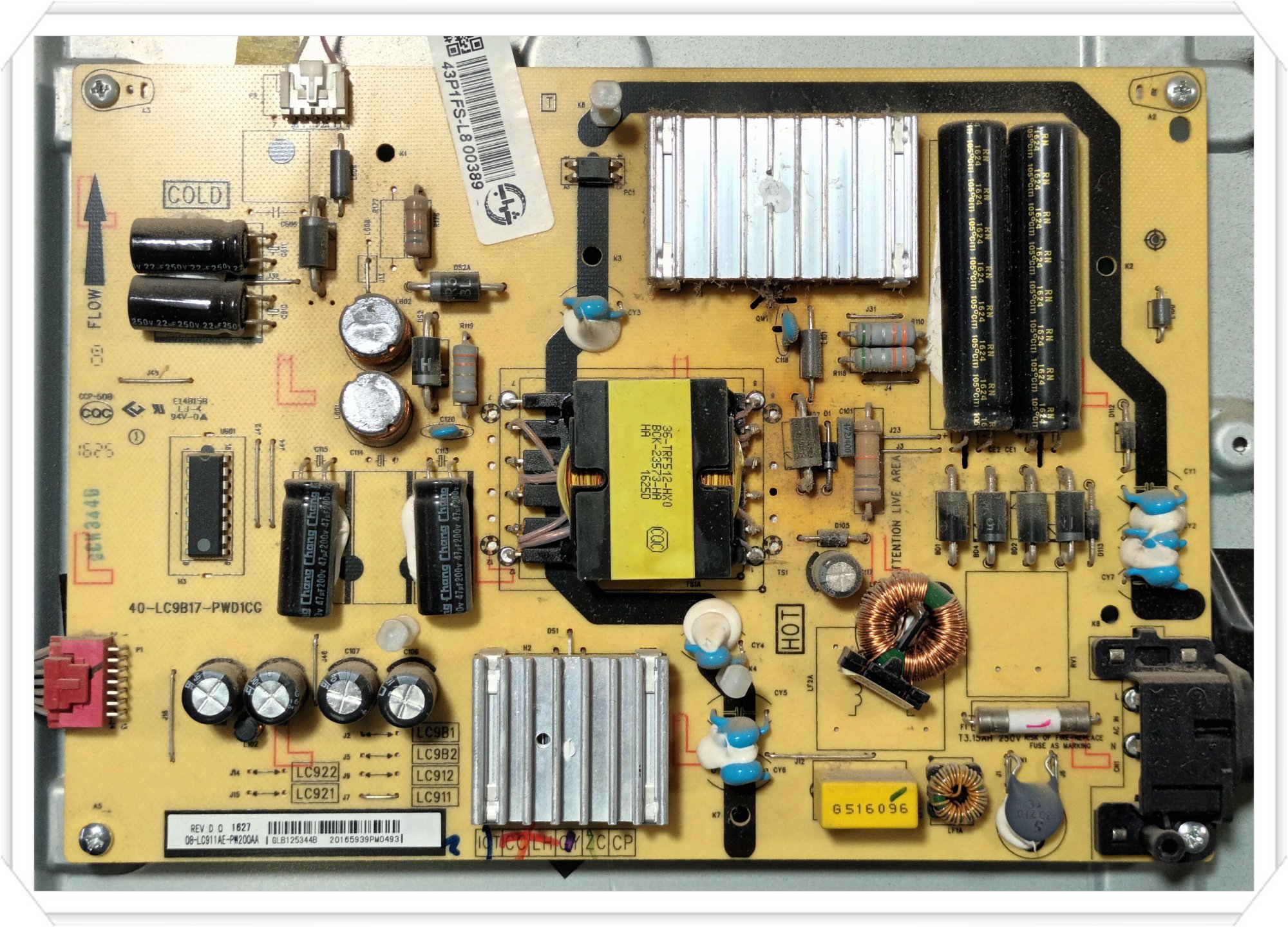

Power Chassis 40-LC9B17-PWD1CG

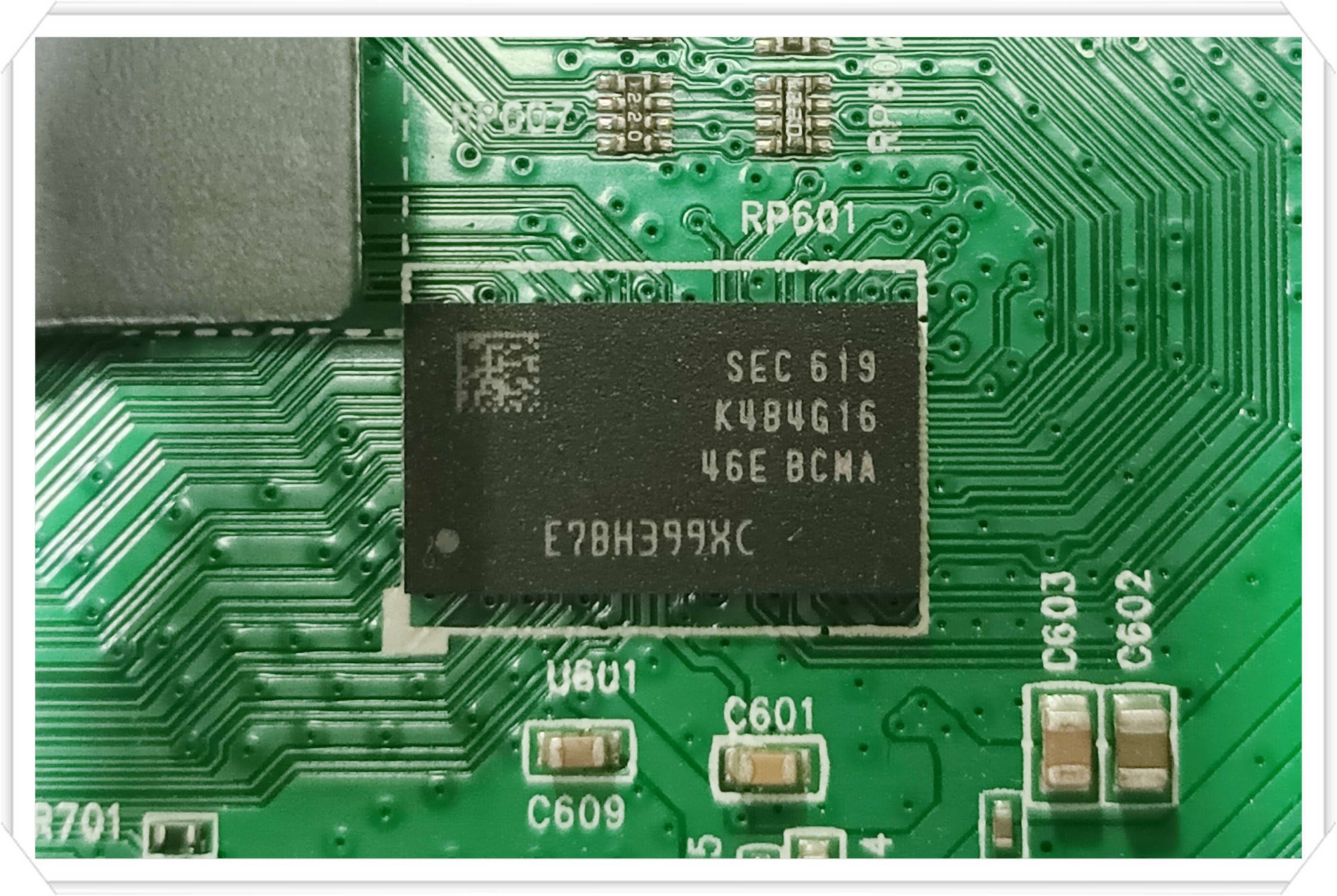

Ram K4B4G1646E-BCMA
WiFi 07-RT8761-BT1G BT31R151A
CPU Mediatek MT5882

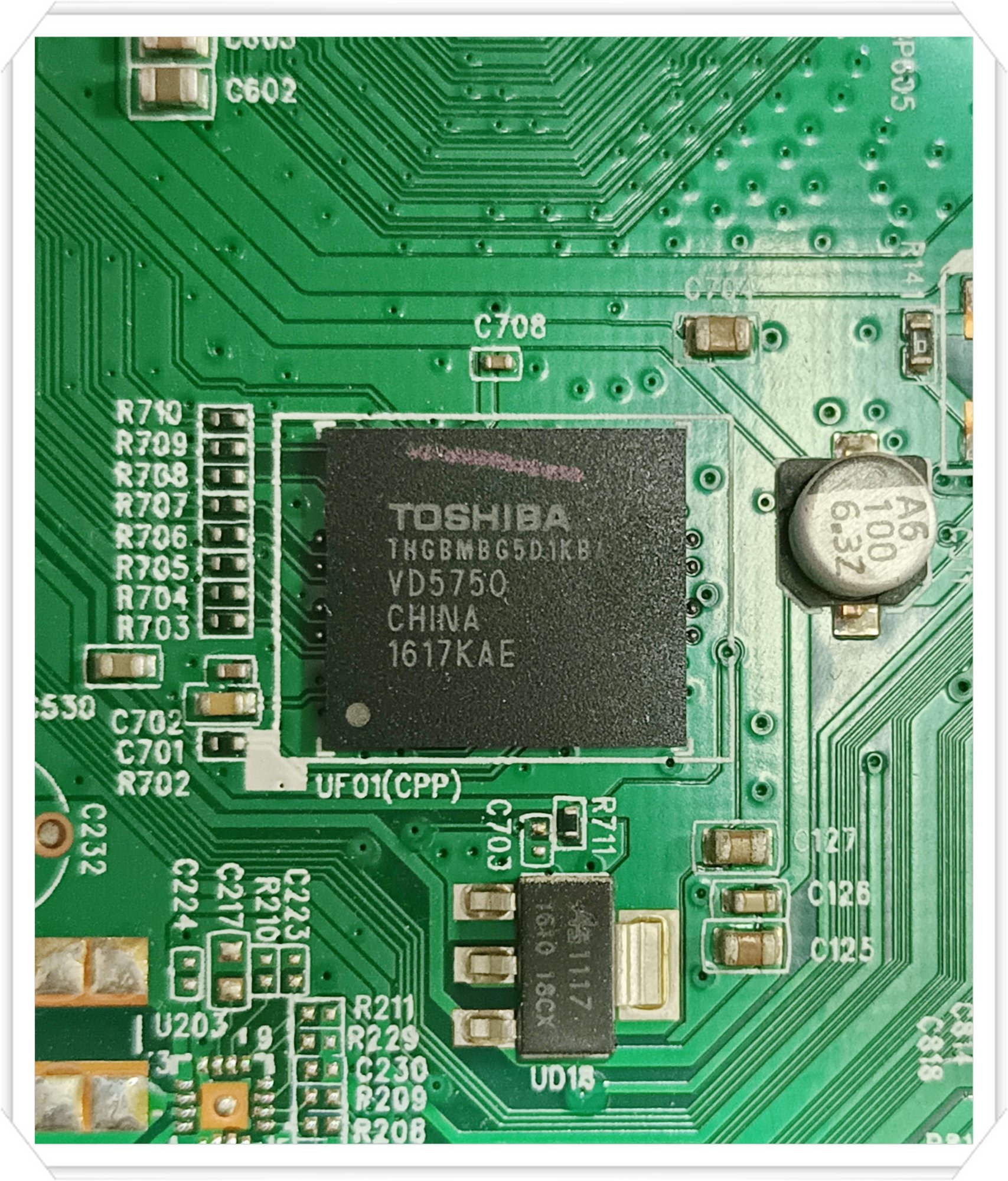

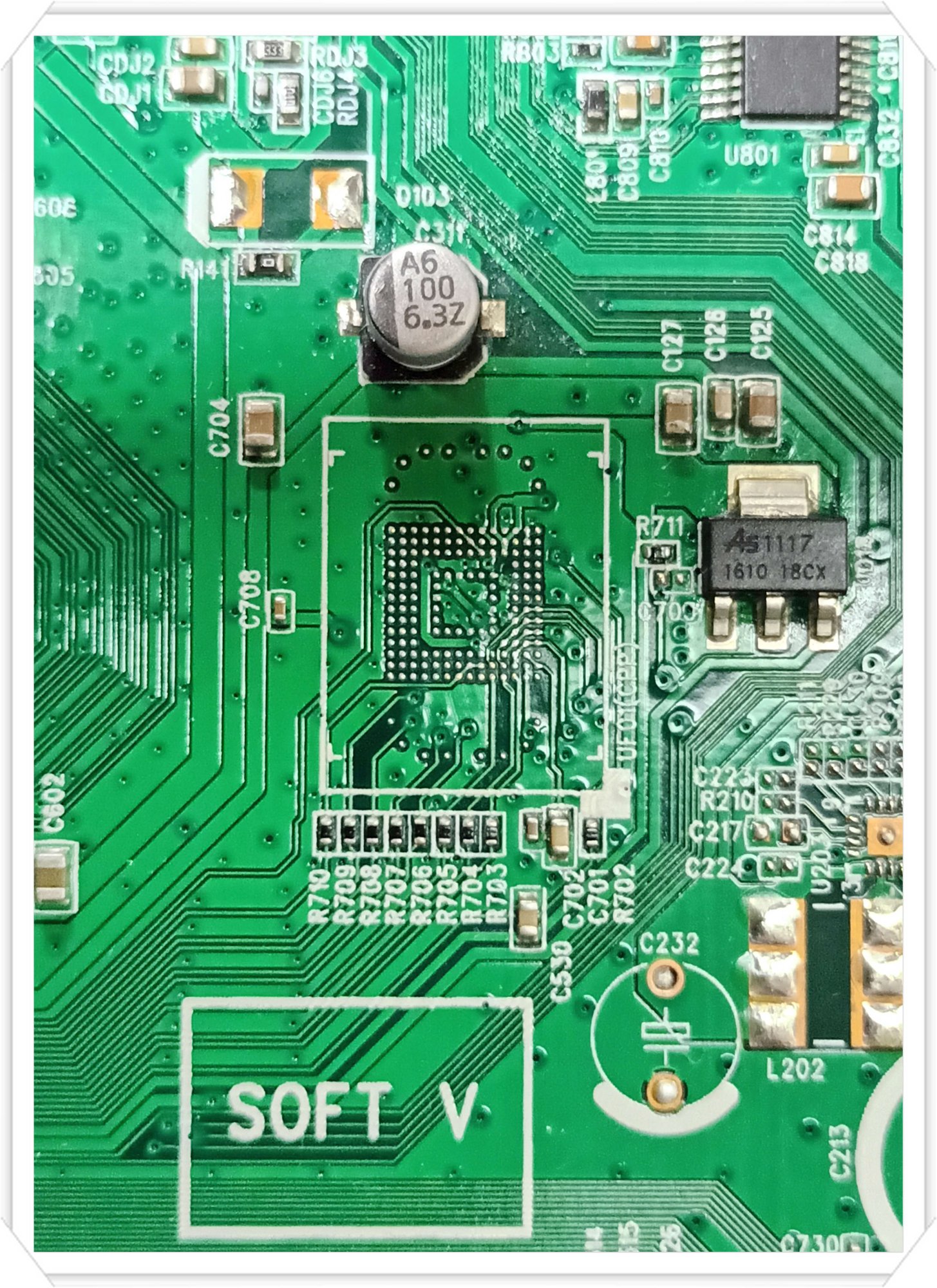

eMMC THGBMBG5D1KB0

Android Info
Brand = Android
Vendor = MTK
Device = mt5882
Model = Generic Android on mt5882
Name ID = mtk_mt5882
Product = mt5882
Platform = mt5882
CPU ABI = armeabi-v7a
Android Version = 4.4.3
Firm Version = KTU84M dev-keys
Inc. Version = eng.zouzl.20170517.165714
Firm Date = Wed May 17 17:01:08 CST 2017

EMMC CID: 110100303034474530026B508920C2AF
EMMC CSD: D05E00320F5903FFFFFFFFE7924000E3
EMMC NAME: 004GE0 , Vendor: TOSHIBA , S/N: 6B508920 , rev. 02
EMMC NAME (HEX): 303034474530
EMMC ROM 1 (Main User Data) Capacity: 3776 MB (0000EC000000)
EMMC ROM 2/3 (Boot Partition 1/2) Capacity: 2048 KB (000000200000)
EMMC RPMB (Replay Protected Memory Block) Capacity: 512 KB (000000080000)
Extended CSD rev: 1.7 (MMC 5.0, MMC 5.01)
Boot from: ROM1 (Main User Area) , width: 1 bit
Boot Partition [179] / Bus Config [177] : 0x78 / 0x00
H/W Reset Function [162] : 0x00 , RST_n signal is temporarily disabled
Partition setting [PARTITION_SETTING_COMPLETE] : 0x01​
