فایلEMMC فایل تلویزیون اسنوا SNOWA SSD-50SA620U با برد 9632T8E پنل K500WDF و آی سی KLM8G1GETF-B041

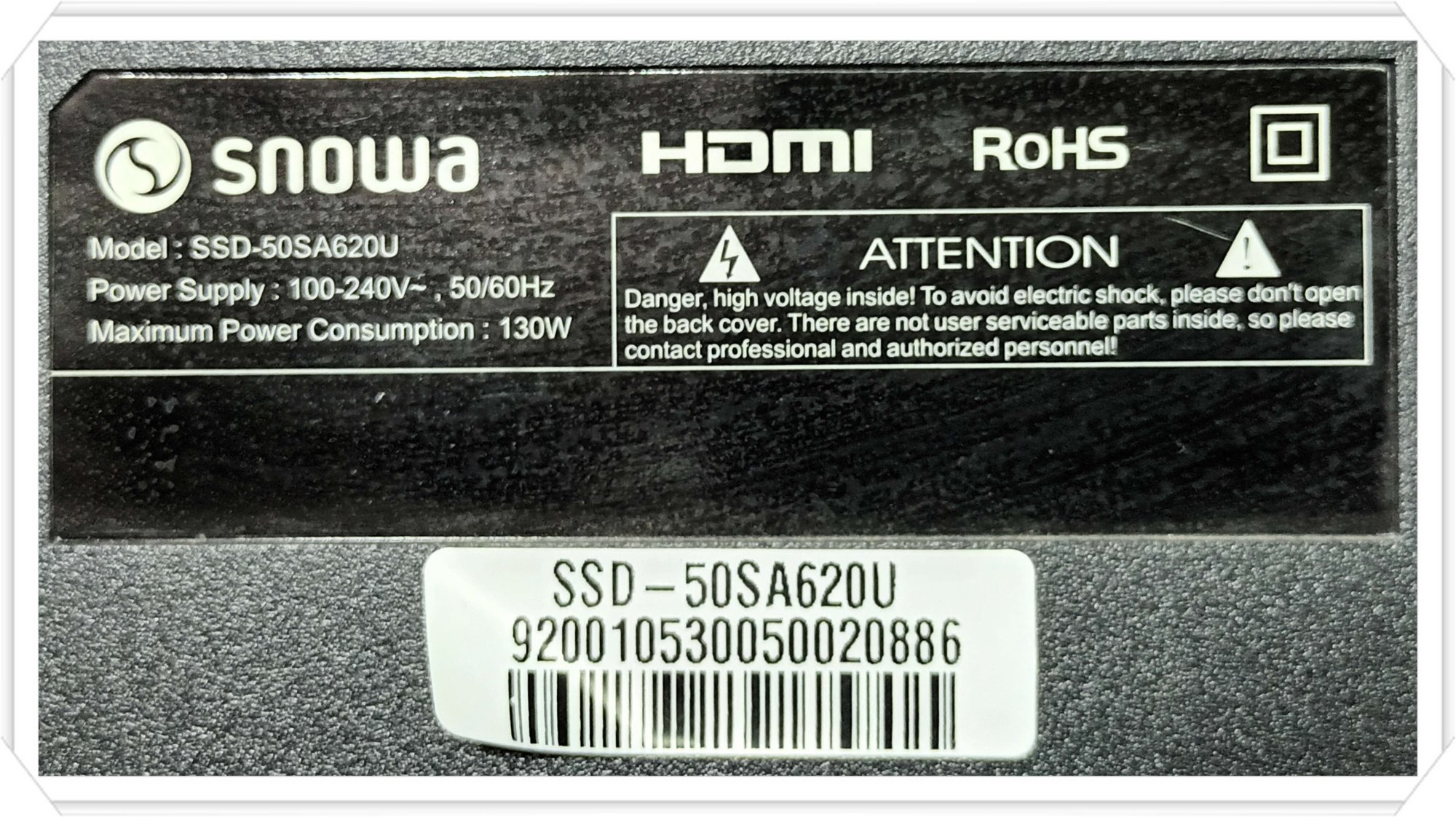

SNOWA SSD-50SA620U

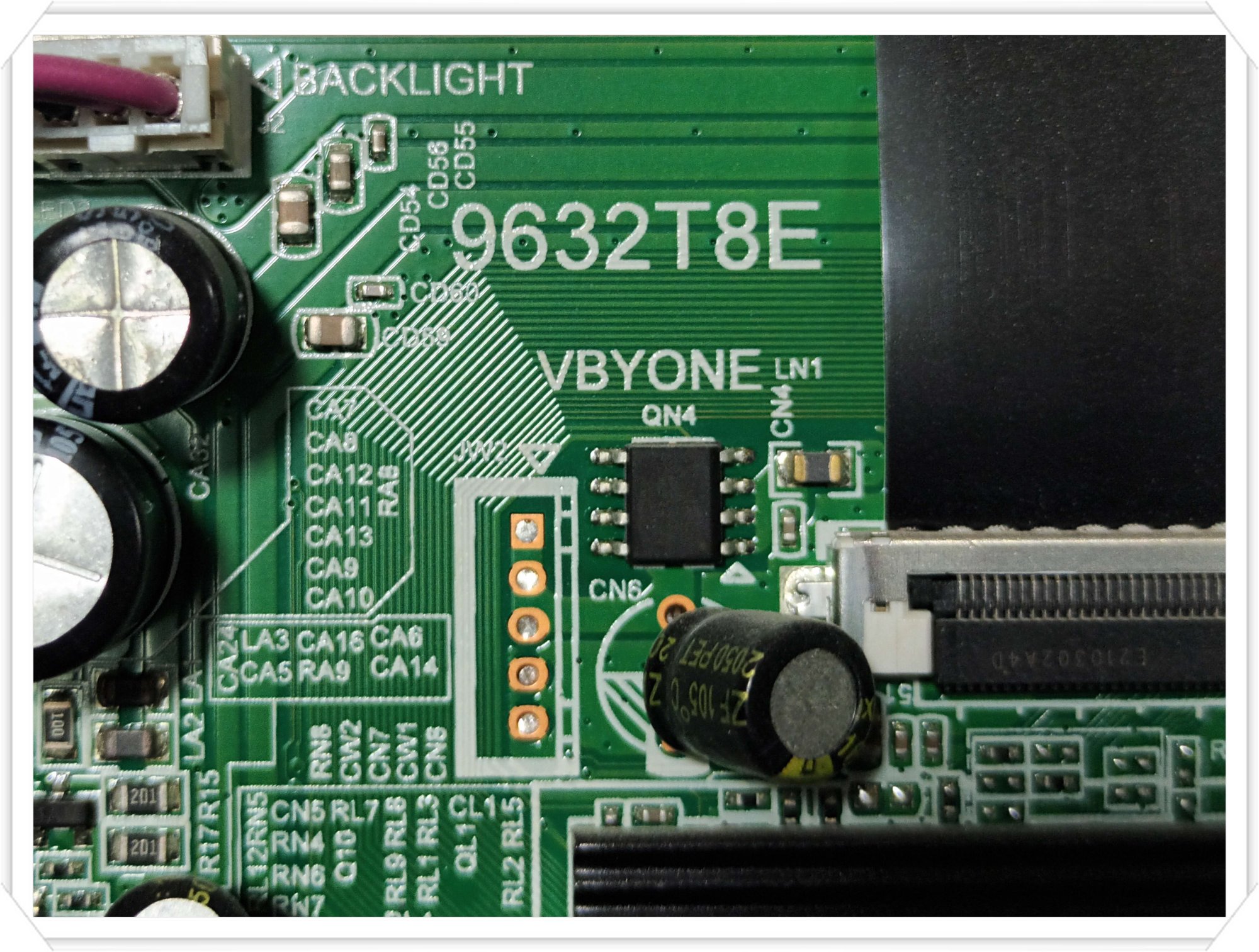

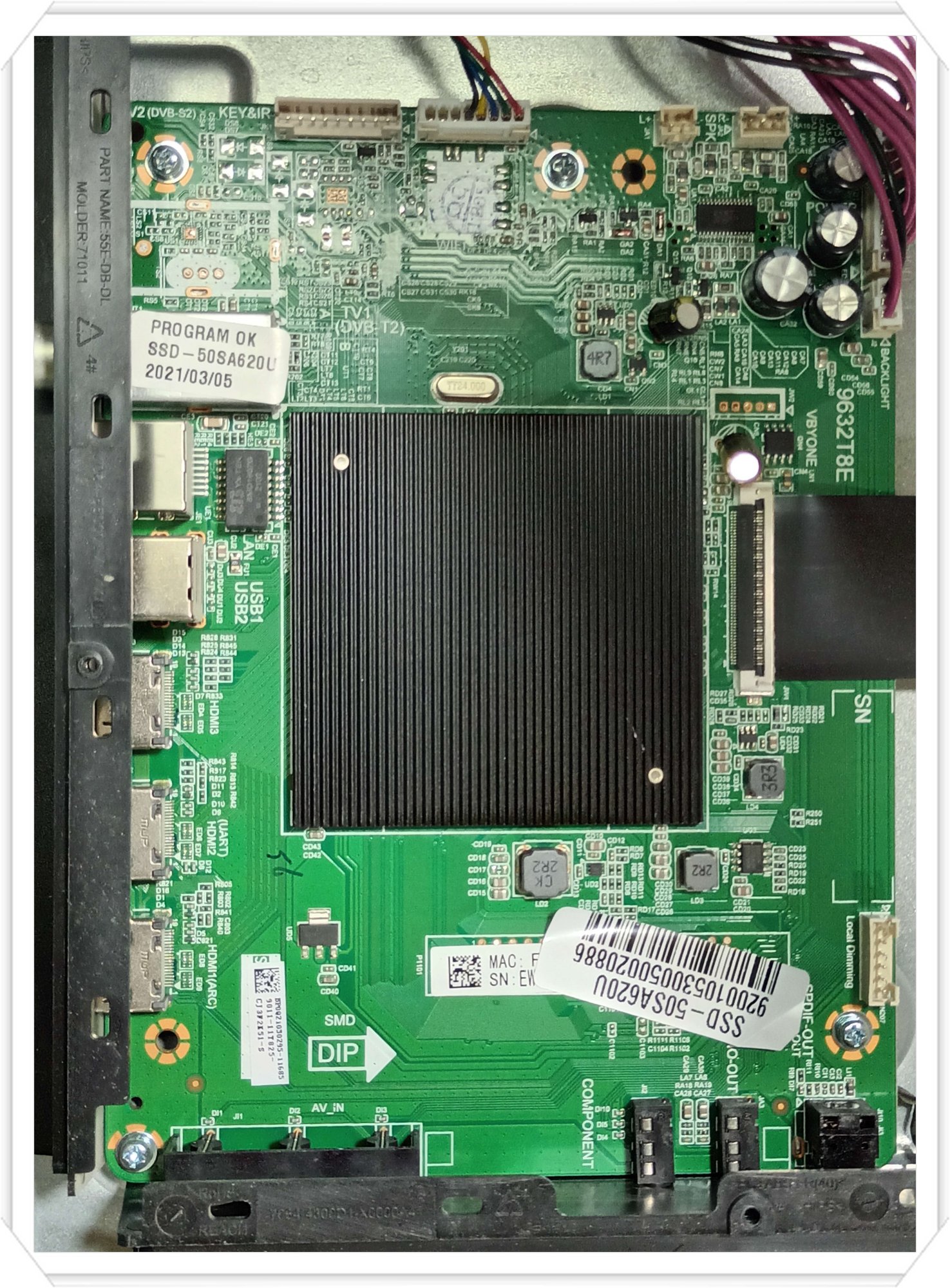

Chassis 9632T8E
Chassis Back 2020-03-04 A2 4704-MT9632-A2233G01

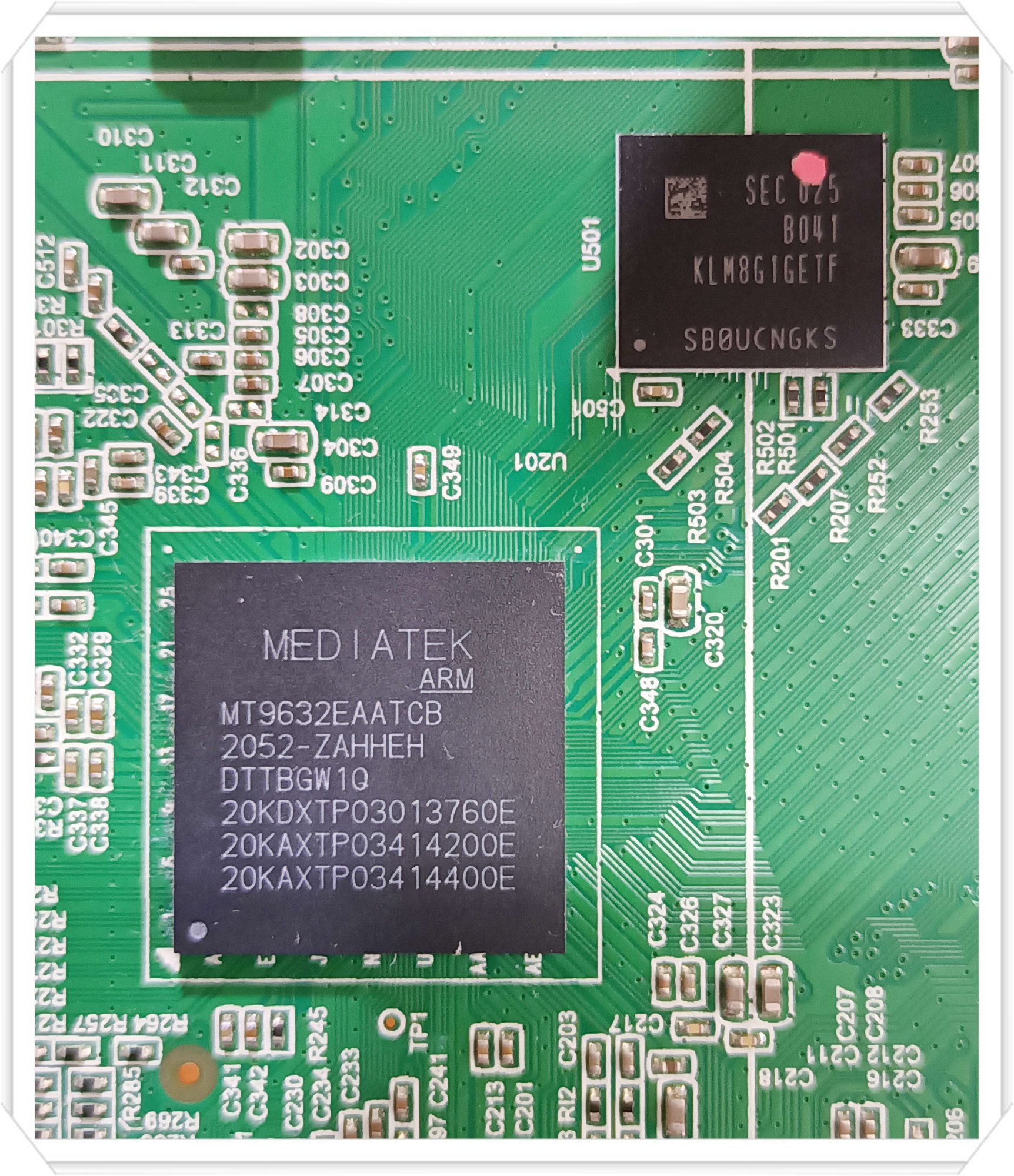

CPU MEDIATEK ARM MT9632EAATCB

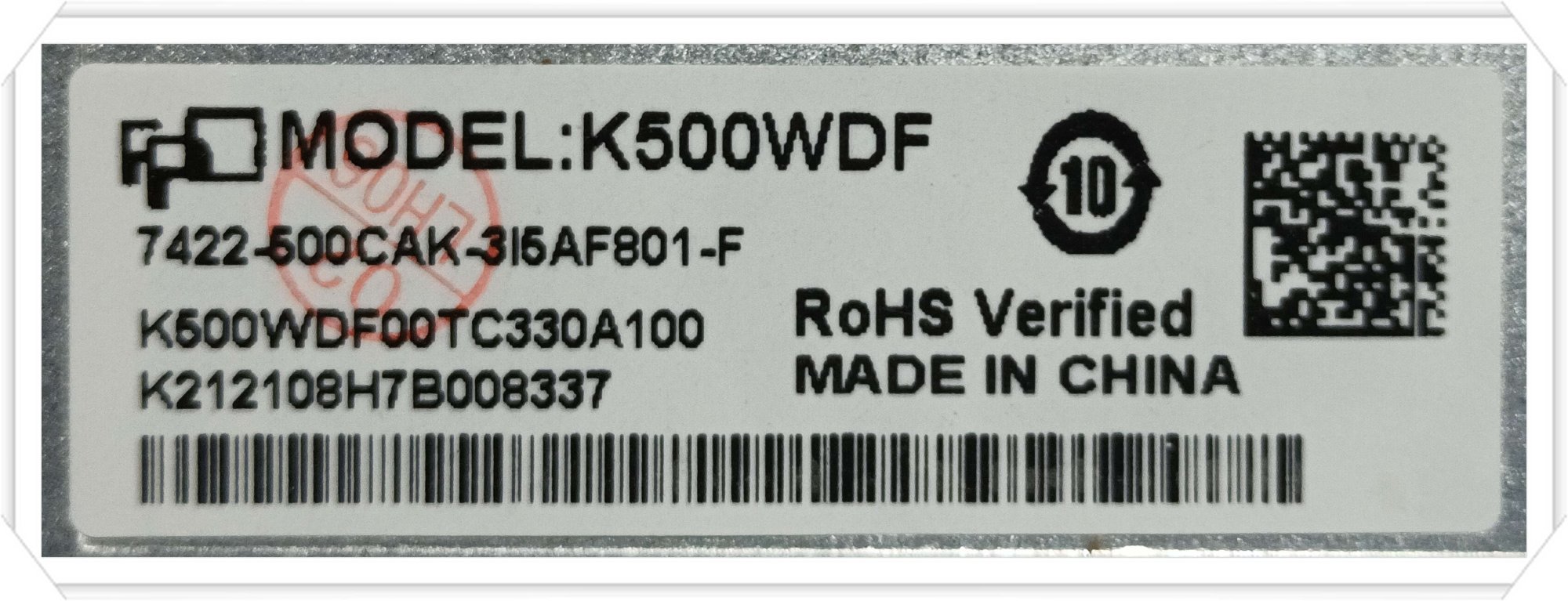

Panel K500WDF
Address CV500U2-L02-XR-1

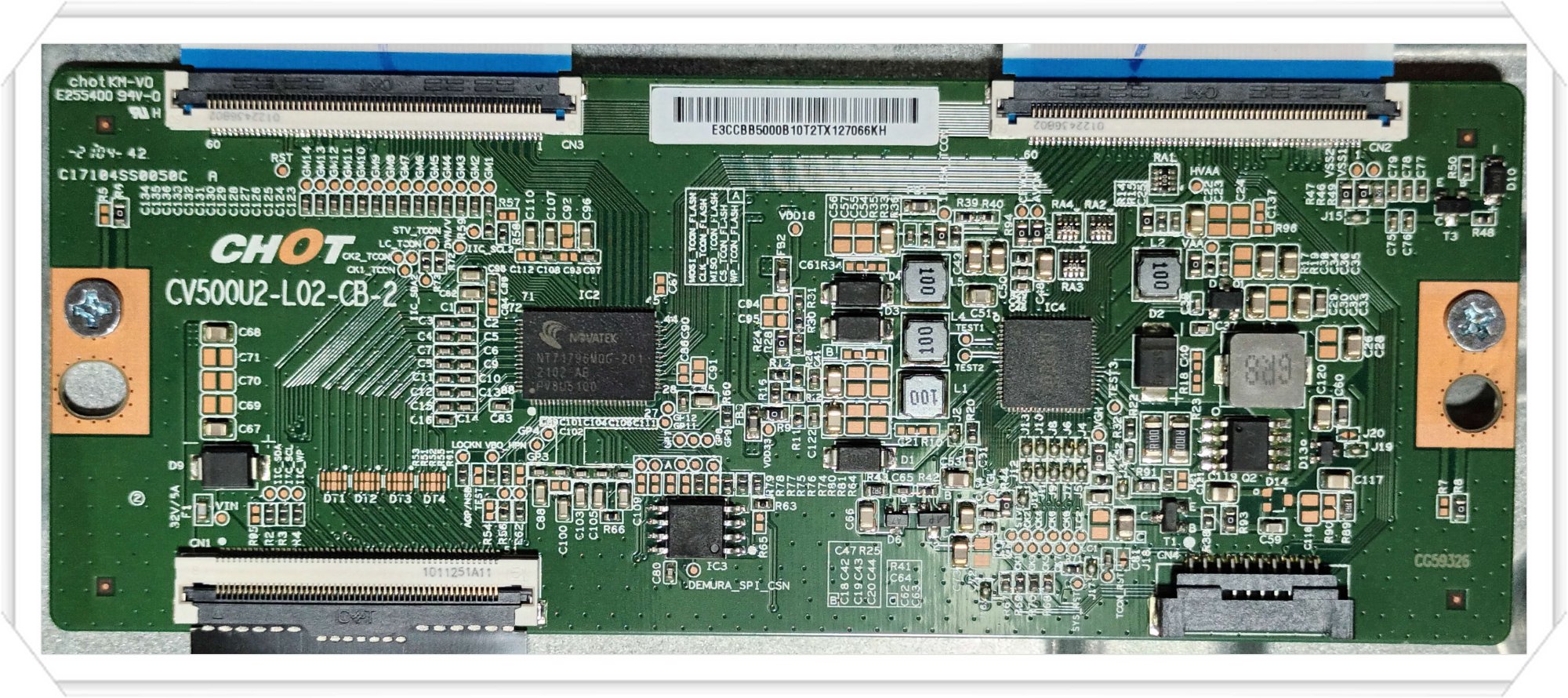

T-CON CV500U2-L02-CB-2
WiFi JUI7.820.0243-1 S Y20M09D17 94V-0 Model WB7668A-LP1
LVDS WIRE CODE 6140-0497HA-51AA1201

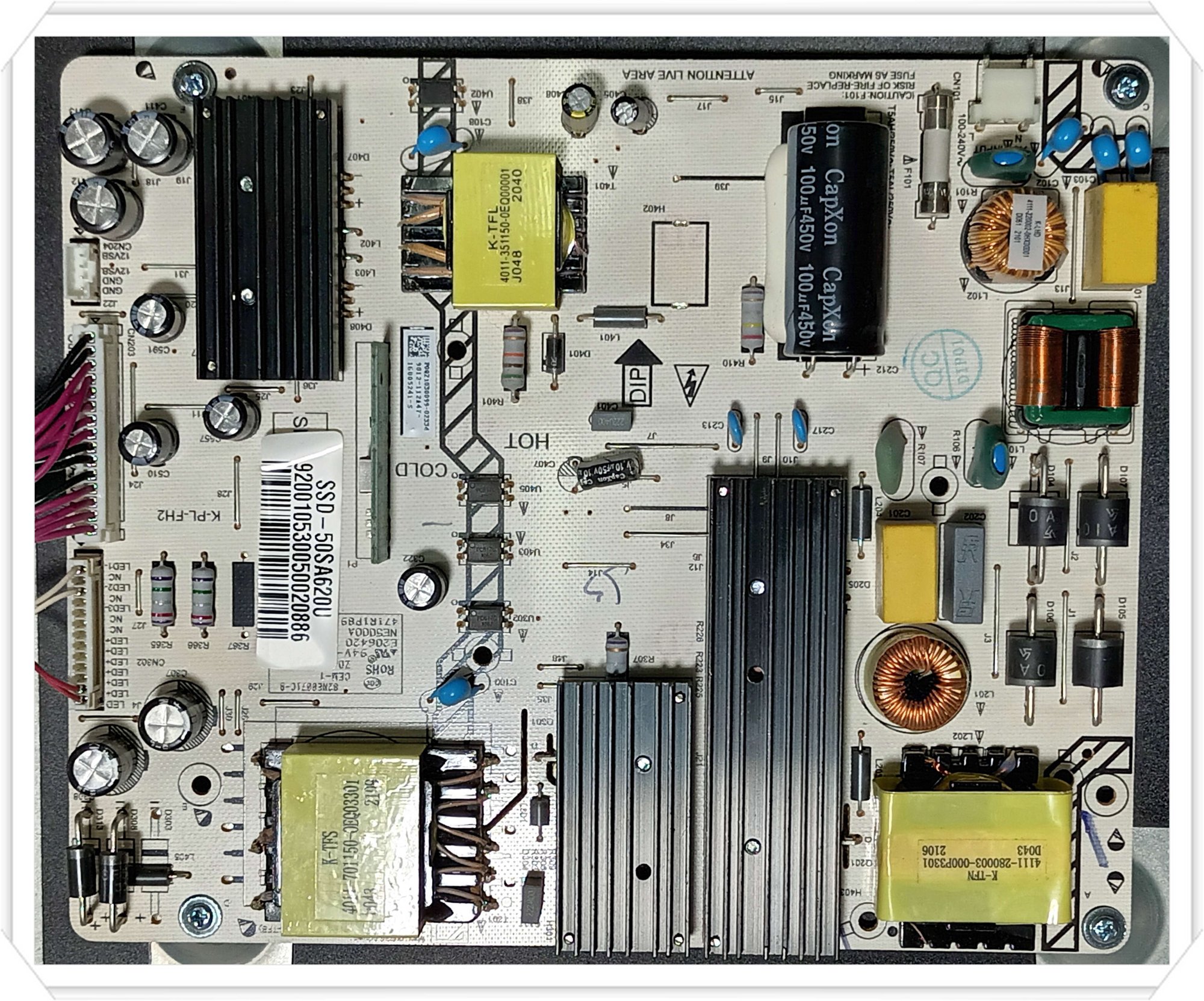

Power 82NE0071C-B NE5000A

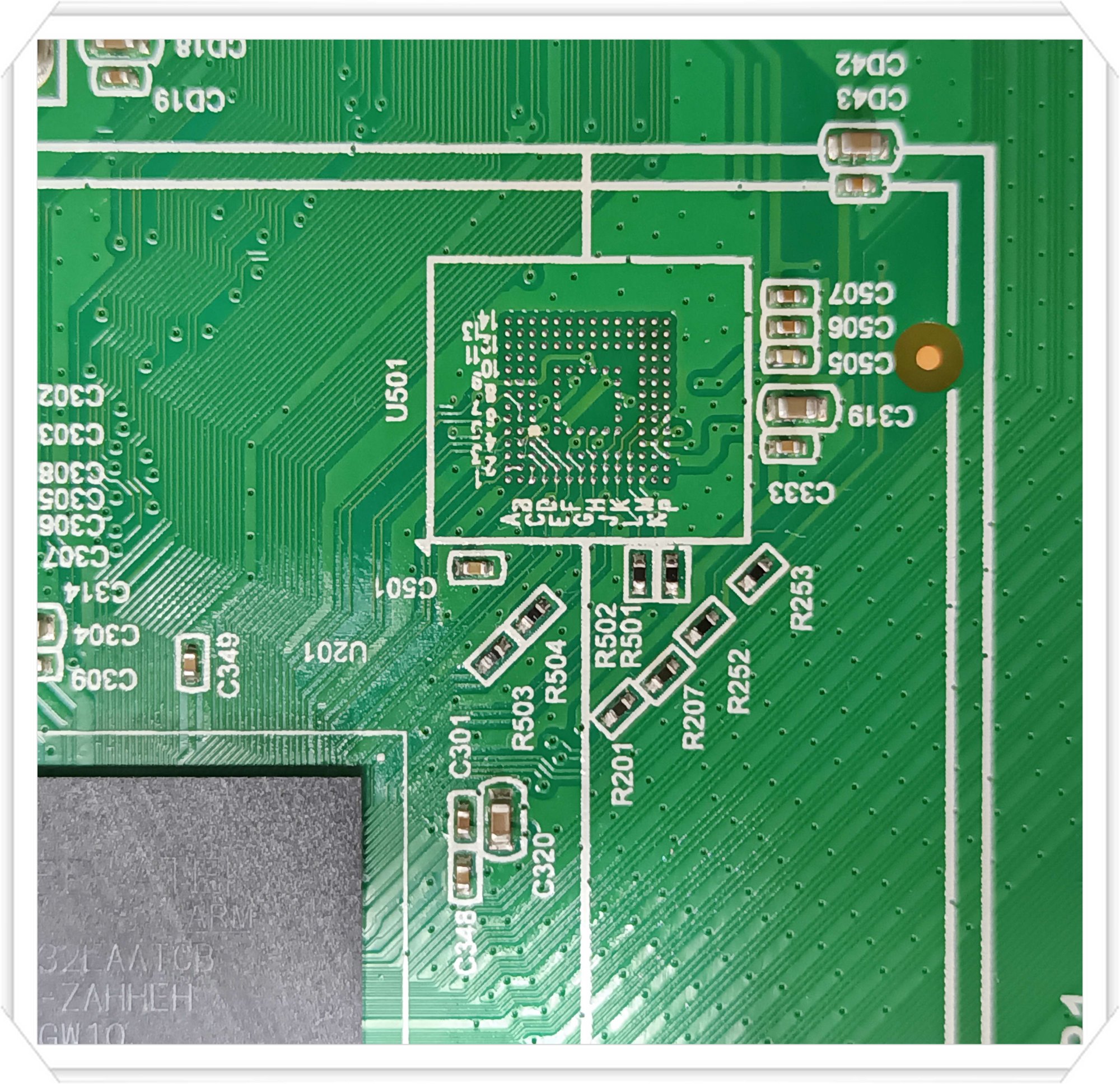

eMMC SAMSUNG KLM8G1GETF-B041

Android Info
Brand = SNOWA
Vendor = MediaTek
Device = SMART TV
Model = SSD-SMART TV-R1
Product = m7332_huma_snowa
CPU ABI = armeabi-v7a
Android Version = 9
Firm Version = m7332_EIG-userdebug 9 PPR2.180905.006.A1 202010301637 dev-keys
Inc. Version = 202406201537
Firm Date = Thu Jun 20 15:38:43 CST 2024
Security Patch = 2020-08-05
Brand = DAEWOO
Model = DSL-SMART TV
Name ID = SMART TV
Platform = m7332

EMMC CID: 150100384754463452060DB5FE1867BF
EMMC CSD: D02701320F5903FFF6DBFFEF8E40400D
EMMC NAME: 8GTF4R , Vendor: SAMSUNG , S/N: 0DB5FE18 , rev. 06
EMMC NAME (HEX): 384754463452
EMMC ROM 1 (Main User Data) Capacity: 7456 MB (0001D2000000)
EMMC ROM 2/3 (Boot Partition 1/2) Capacity: 4096 KB (000000400000)
EMMC RPMB (Replay Protected Memory Block) Capacity: 512 KB (000000080000)
Extended CSD rev: 1.8 (MMC 5.1)
Boot from: ROM2 (Boot partition 1) , width: 8 bit
Boot Partition [179] / Bus Config [177] : 0x08 / 0x02
H/W Reset Function [162] : 0x01 , RST_n signal is permanently enabled
Partition setting [PARTITION_SETTING_COMPLETE] : 0x00
​
